Openservo Atmega8 routing attempt

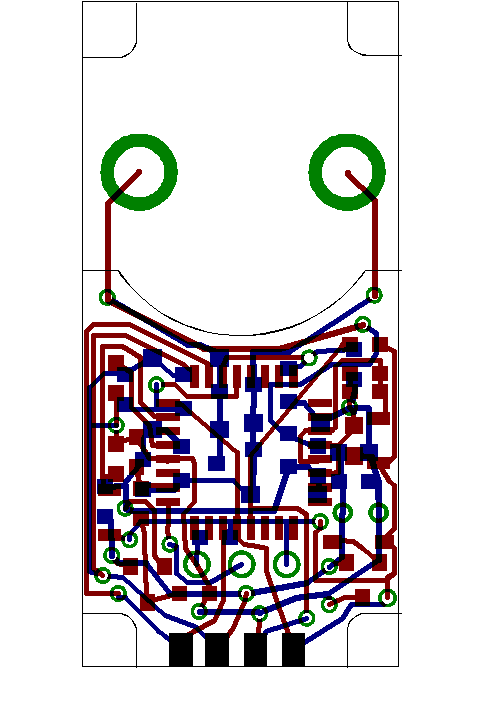

Board routed, based on Mikes expresspcb design

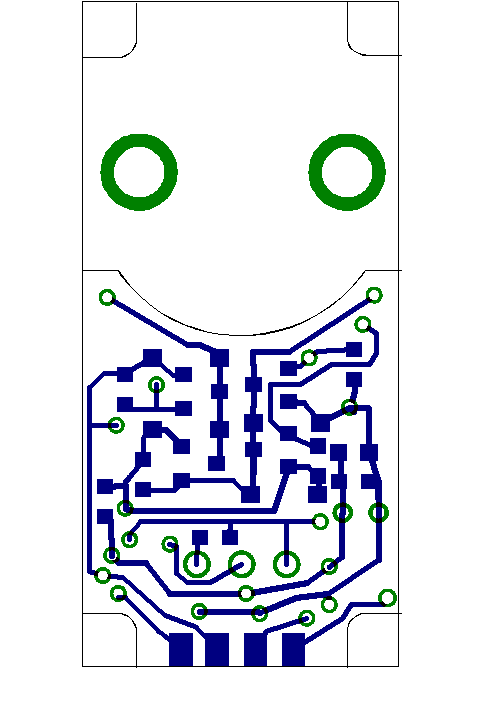

bottom

traces

 top

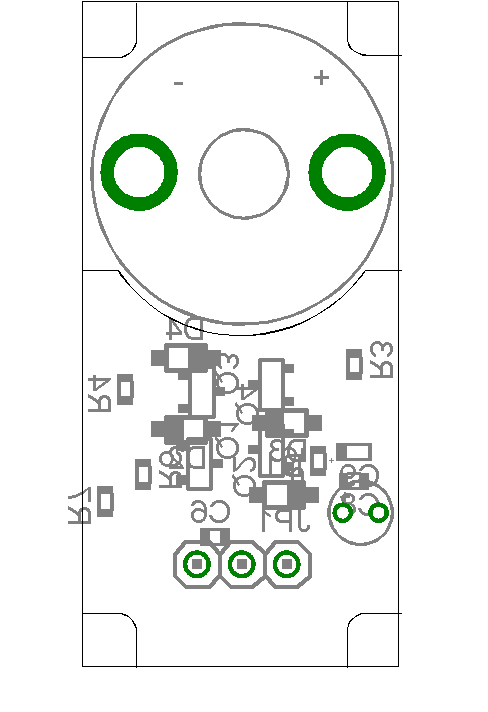

bottom layout

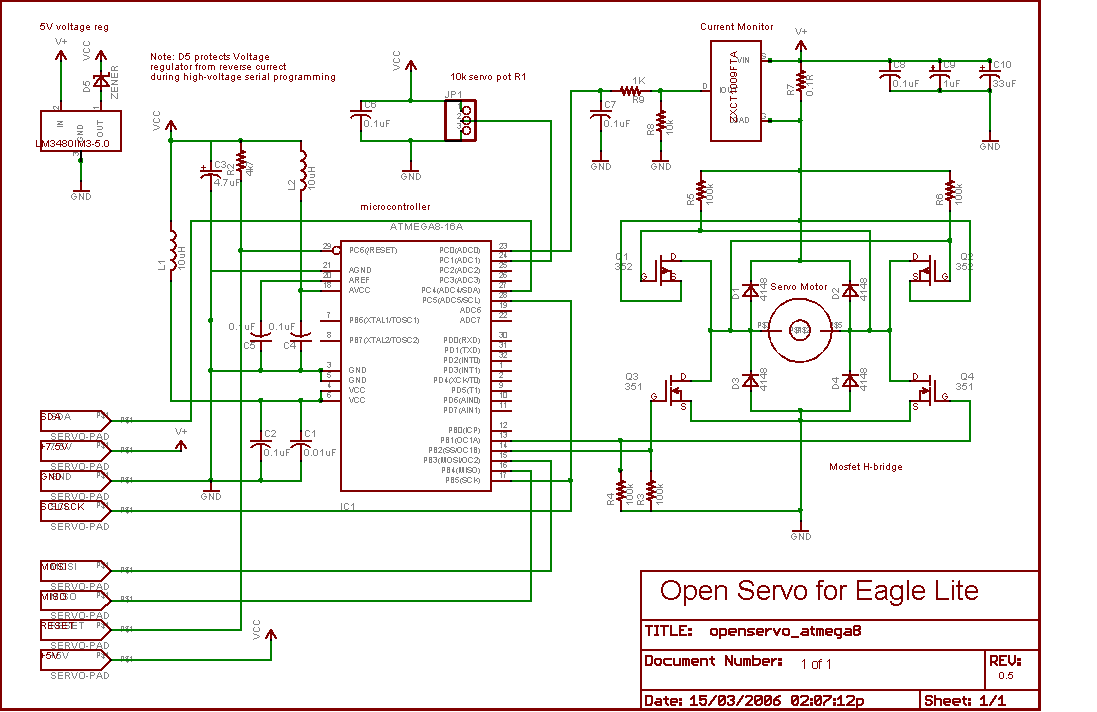

Schematic Image

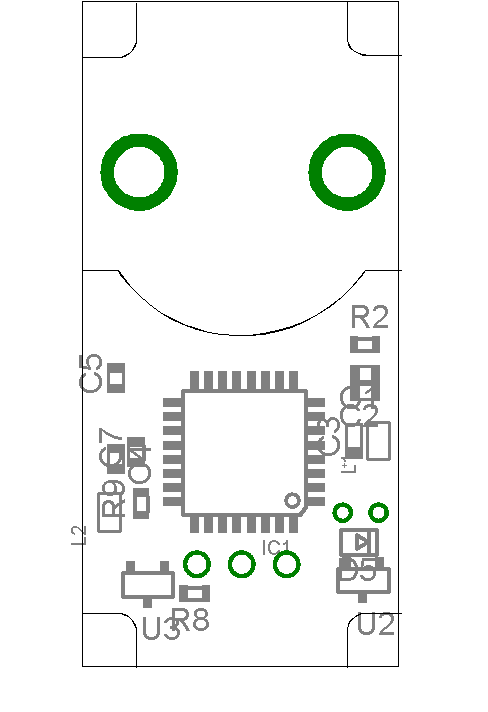

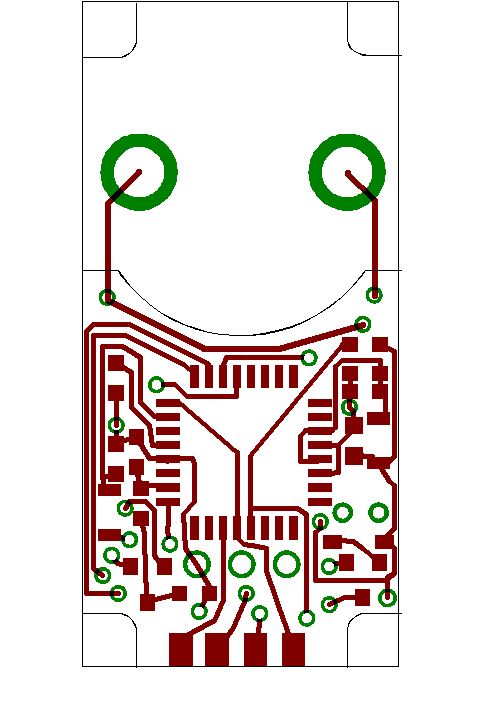

top layout

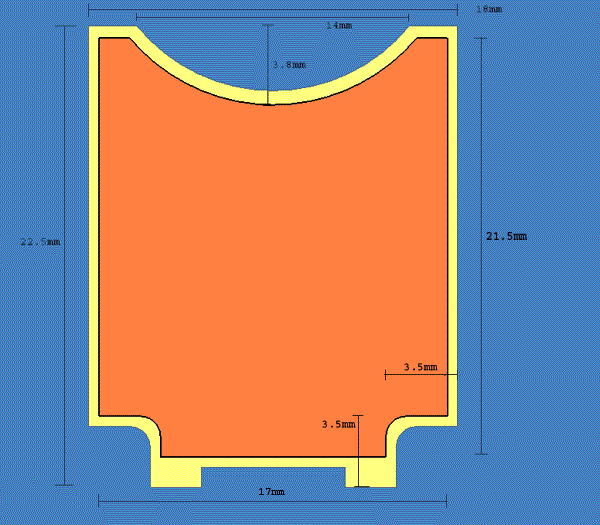

Board Dimensions

openservo/openservoeagle.sch

openservo/rifraf.lbr

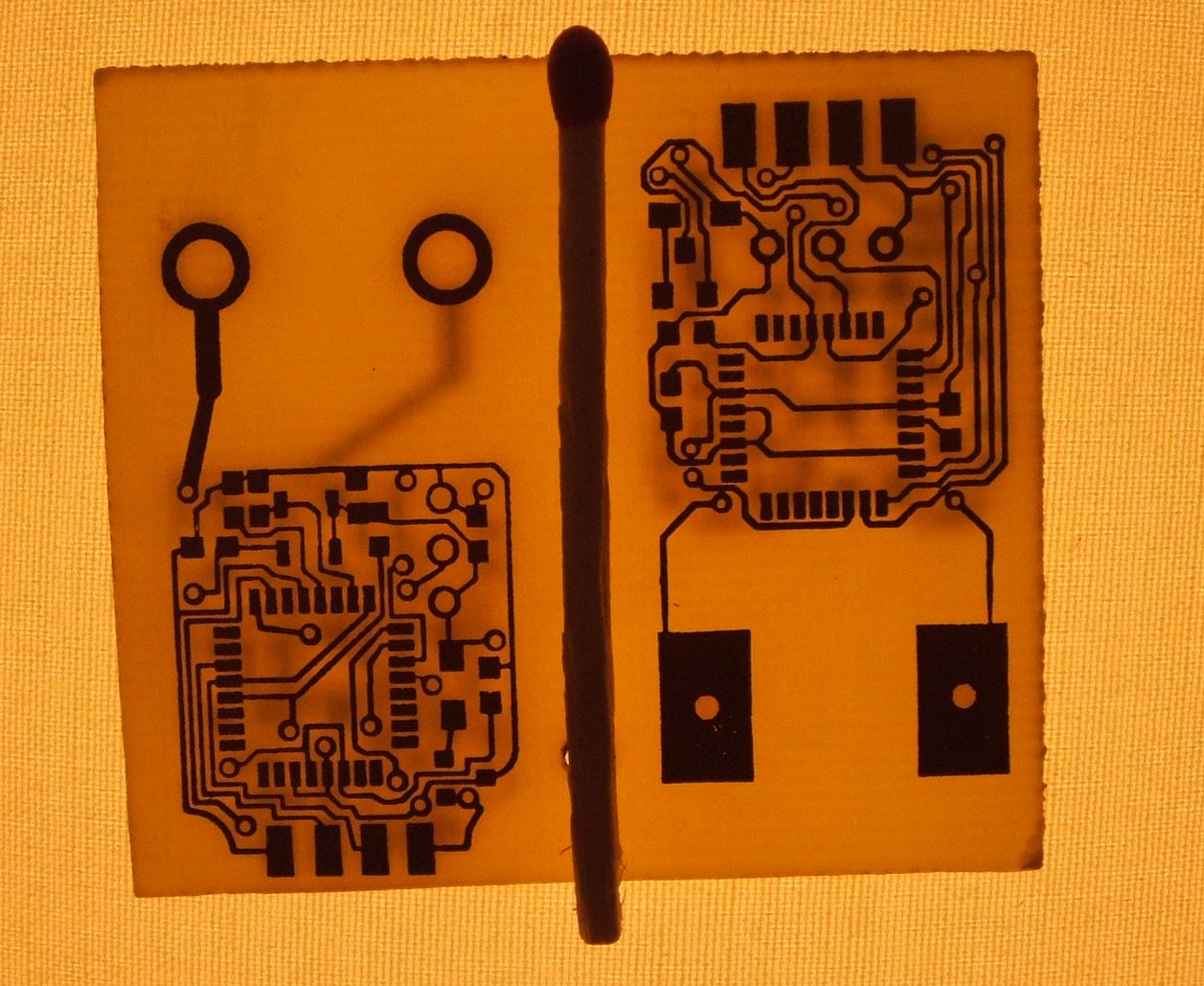

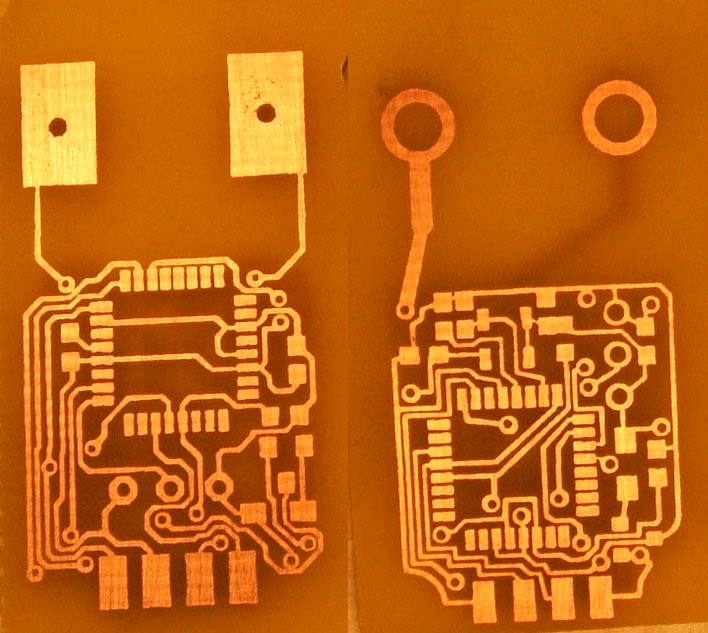

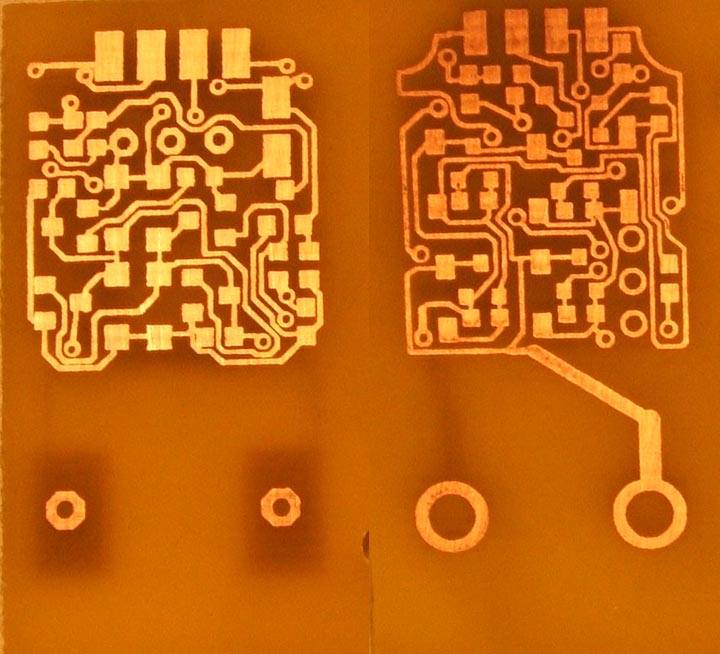

Some prototype etchings of 2 designs

Bottom

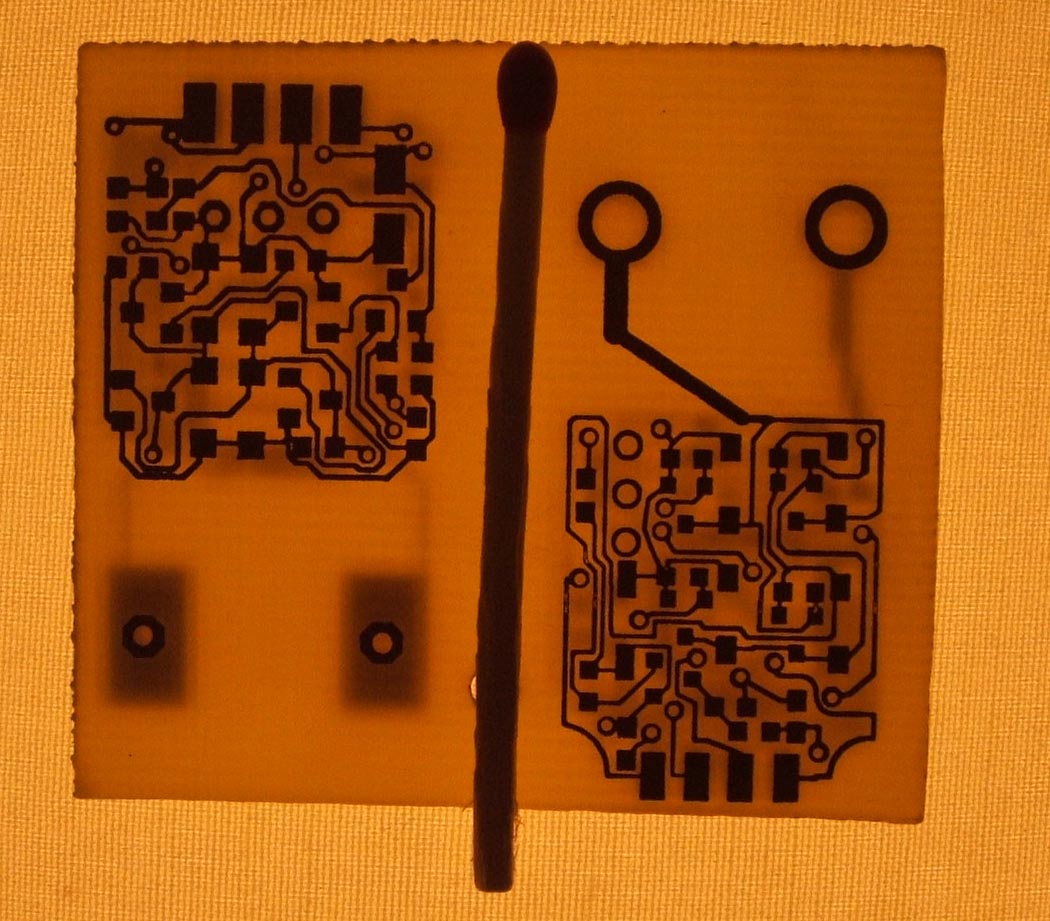

Bottom backlit
